Talon Mini Head w/ Mk1 Advanced Console Full System

A full and operational Talon Mini remote jib head system, complete with Talon Mini, Mk1 advanced controller, and accessories needed to start operating right out of the box. Full size case included.

The Talon Mini System features our new two axis pan/tilt remote head, the Talon Mini. The successor to the full size Talon head, this little head packs a punch. Weighing in at only twelve-and-a-half pounds, the Talon Mini has a fifty pound capacity with the Cradle. The Talon Mini comes standard with a Mitchell spud and can be used with tripods, cranes, dollies, and more. With sliprings in both the pan and tilt axes, this head has unrestricted 360° rotation. There is a lens port on the Tilt axis for lens control. Camera plate height is adjustable with the included spanner wrench. 48V upgrade standard, with polarity rectifier! Run any battery pack up to 48v without worry. -Still runs on 24v minimum.

Included in this system is the Mk1 advanced controller with joystick control for Pan/Tilt/Zoom, separate Knob for Focus.

Specs:
• Record and move to up to 2000 mark positions
• Record and playback up to 1 hour and 2000 takes
• Share recorded data w/ PC: upload/download
• Programmable max speeds for individual motors
• Programmable smoothing controls for each motor
• 2500′ max std extension, longer w/ fiber optic option
• Programmable motion stop limits for both pan & tilt
• Fuji/Canon serial & analog lens control
• Zoom Compensation for smooth moves at telephoto
• Camera sync. feature for frame-accurate shots
• Advanced Intervalometer provides 3 modes for stretching moves in time

This system includes one lens cable, please select before checkout. Additional lens cables are available separately for Canon and Fujinon analog and digital lenses.

This "mini Talon" is eager to be put to work!

Click for Talon Mini Datasheet

Talon Mini Specs:

• Weight: 12 1/2 lbs

• Capacity: 50 lbs with Cradle / 25 lbs without cradle

• Overslung and Underslung capable

• Voltage: 24-48 VDC

• Amperage: 4A max at 24VDC - 1A avg pull

• Speed: 120 deg sec MAX down to a snails pace minimum

• Camera Clearance: Vertical – Camera pointing straight down/up: 9.5" from center of cam plate to base (Very safely). Cradle package max width: 6.5" from center of cradle pivot to spanner nut face on Tilt.

Package Contents:

• SKB Rolling Hard Case with Custom Foam Inserts

• Talon Mini Remote Head

• Mk1 advanced console

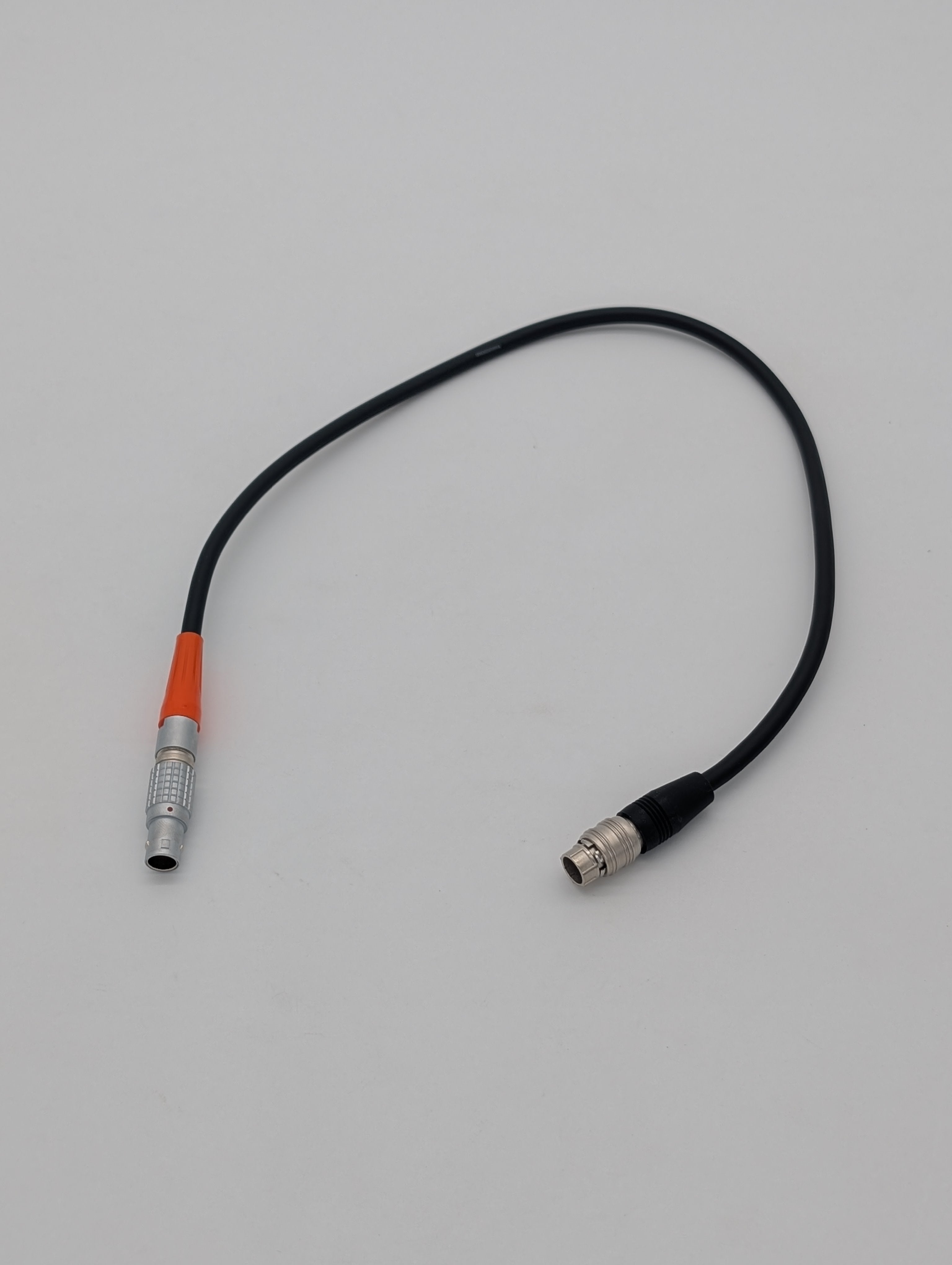

• Lens Cable (Canon or Fujinon, analog or digital)

• 30ft Control Cable

• 30ft Power Cable

• Talon Mini Power Adapter Cable

• Power Supply (110-240 VAC) & 10ft AC Cord

• Tilt Spanner Wrench

• Mitchell Nut & Wrench (Other mounting options available-ask)

Additional configurations available upon request. Contact us here.
