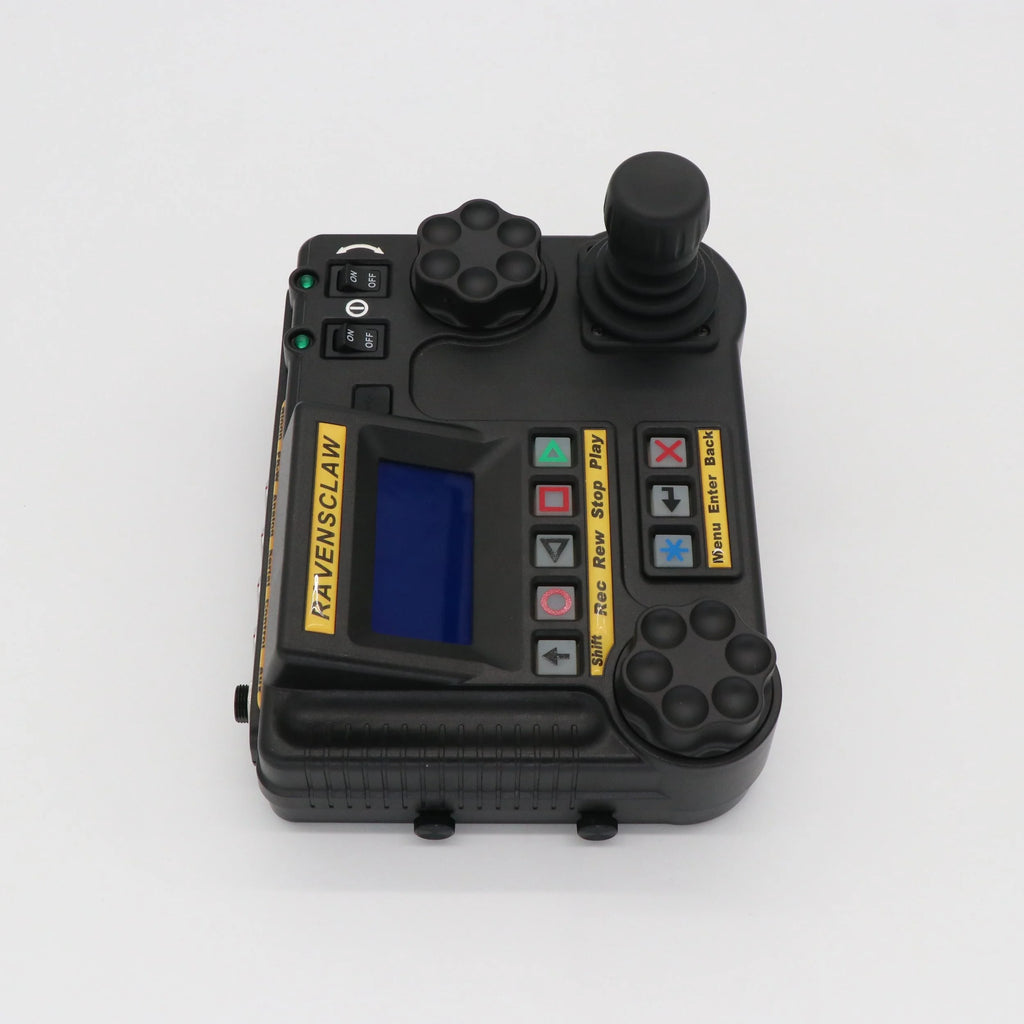

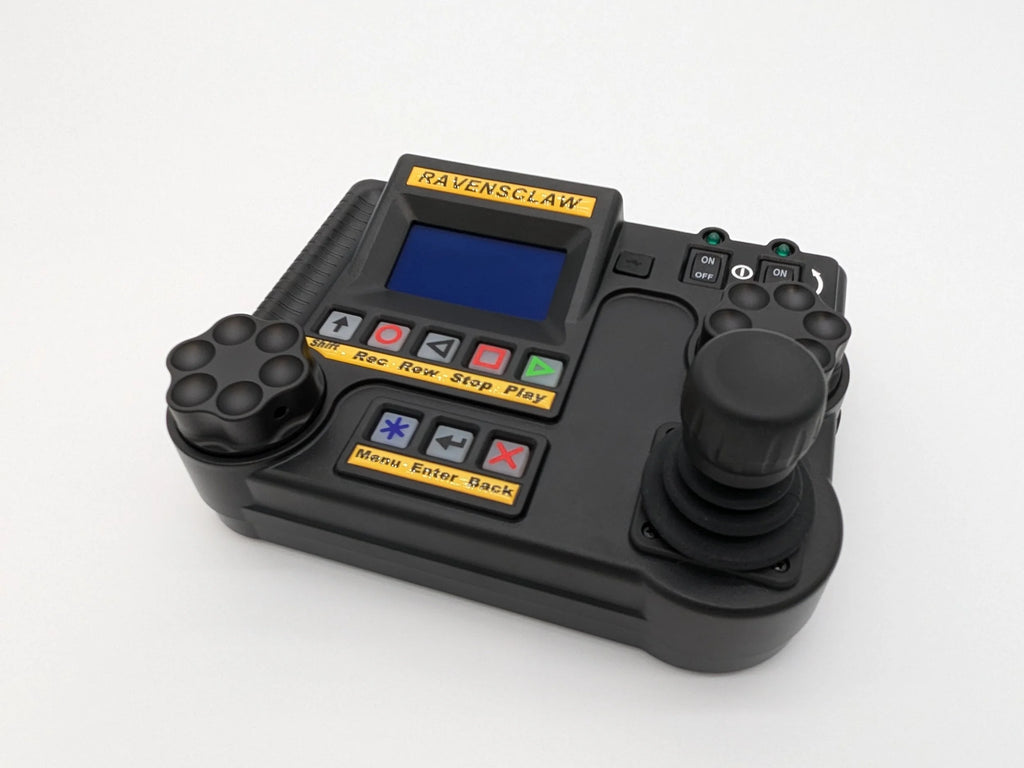

Mk1 console

Our Flagship controller that’s been paving the way for more than 20 years.

Featuring a 2.75” blue LCD display, this console can display degree position of both axes as well as display zoom and focus positions. Zoom and focus are controllable via joystick twist and an encoded knob, respectively, or through the Lens Control port. Easily record takes/moves and marks with this console and play them back all day long (play / repeat). The setting of smoothing, speeds, position or velocity mode, analog lens voltages, and more are possible with the Mark One.

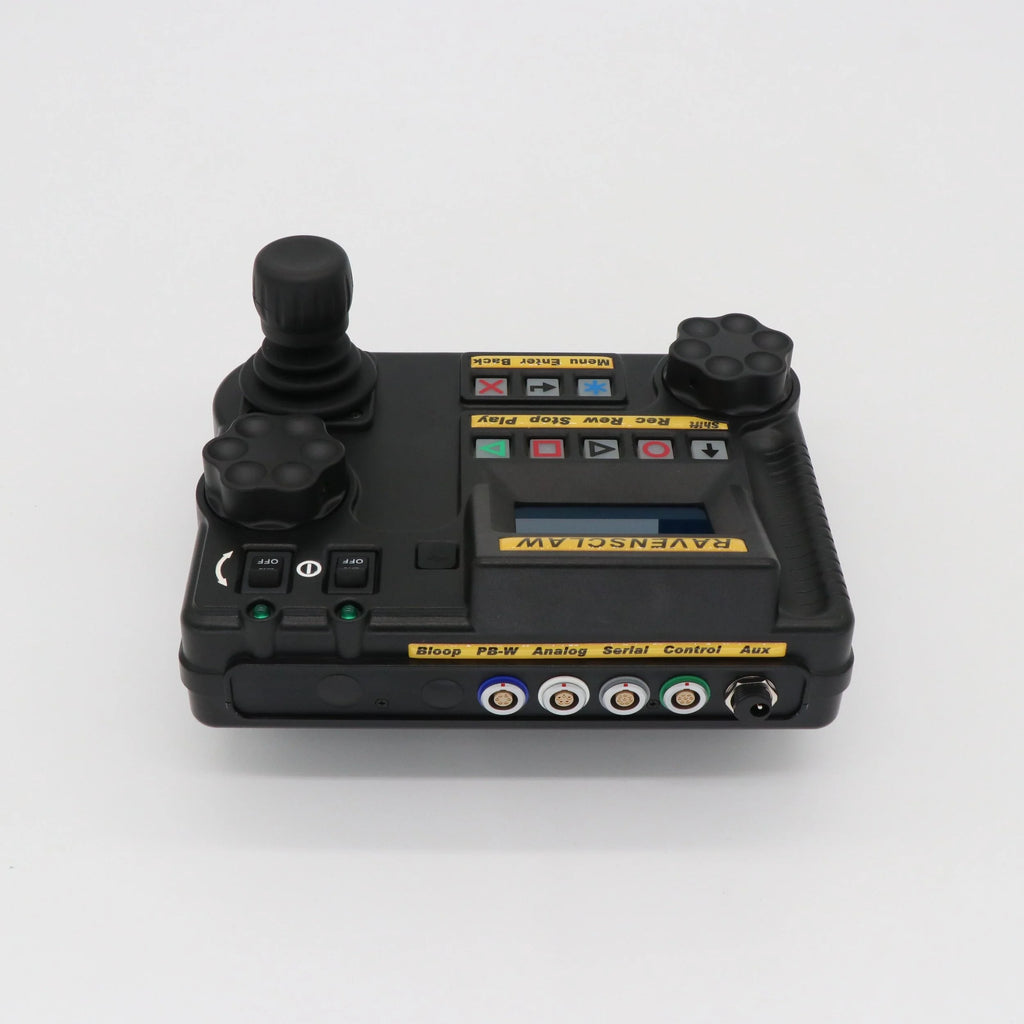

The Mark One has a Control port for head control, a PanBar/Wheels port for handwheels, a Lens Control port for lens control input, and a Serial Set Streaming port for computer integration. Optional ports for BLOOP and integration with NODO Film System’s Inertia Wheels are available for an additional cost, upon request.

Joystick control for Pan/Tilt/Zoom, separate Knob for Focus
• Record and move to up to 2000 marked positions
• Record and playback 1 hour and up to 2000 takes
• Share recorded data w/ laptop: upload/download
• Programmable max. speeds for individual motors
• Programmable smoothing controls for each motor
• Precise homing control via pushbutton commands
• 2500′ max std extension, longer w/ fiber optic option
• Programmable motion limits for both pan & tilt
• Servo tuning available at Full Function Remote
• Fuji/Canon serial & analog lens control
• Zoom Compensation for smooth moves at telephoto
• Camera sync. feature for frame-accurate shots
• Advanced Intervalometer provides 3 modes for stretching moves in time

Starting at $3400.
